The Swiss Army Knife of Video Signals

The All-In-One design of the ADIO device family tidies up your installation by combining boxes with their power supplies and cables into one unit only. In addition to being cost-effective, this solution reduces possible point of failures, making your setup more reliable as well as easier to use, control and debug.

The ADIO-1 signal repeater and converter is capable of connecting video sources of many different types and protocols to a Multi Display Manager, digital video grabber and/or video processor device. Combined with a MDM/MDI-7 Board, no additional power supply is necessary and full monitoring of the source quality is possible from the Multi Display Manager administration interfaces.

Discover the Key Features
ADIO-1

Straight thru conversion of up to 8 different analog/digital video signal types to a DVI/HDMI signal
Supports resolutions up to 1920×1200@60Hz (WUXGA)
High reliable local video signal repeater
USB 1.1 hub and connection for keyboard & mouse
Remote monitoring of the ADIO with a Multi Display Manager (MDM)
Redundant power supply support
Lean cable and power management
Electrical safety according to standard EN62368-1

Discover the Key Features

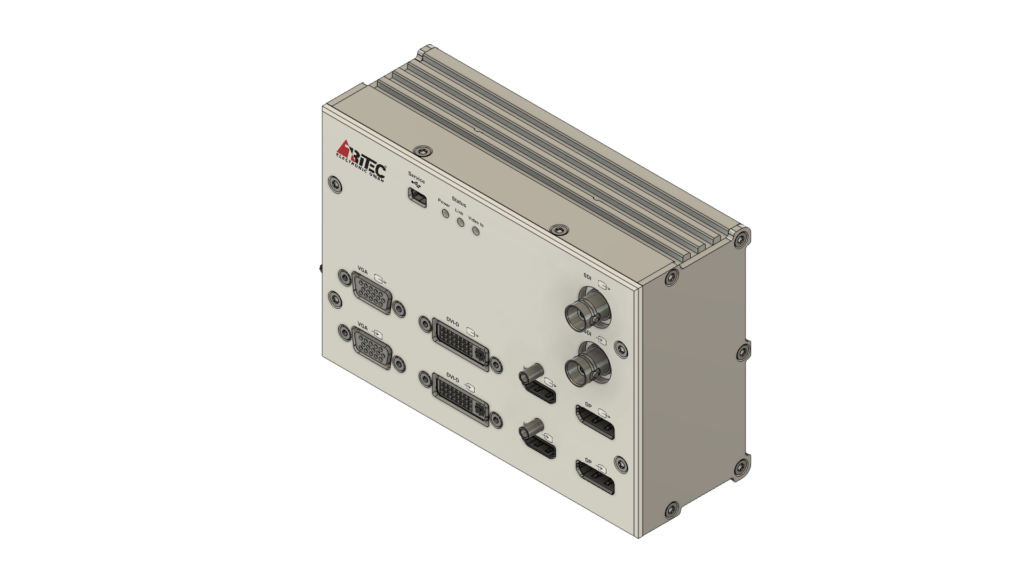

ADIO-2

Straight thru conversion of different analog/digital video signal types to a DVI/HDMI signal
Supports input resolutions  up to 3840×2160@60Hz (4K)
Downscaled output resolutions  up to 1920×1200@60Hz (FHD)
High reliable local video signal repeater
Remote monitoring of the ADIO with a MultiDisplayManager (MDM)
Internal power supply
Lean cable and power management
Electrical safety according to standard EN62368-1
